Dampner, Gauge Saver

Feature

Dampner: Used to protect pressure gauges from sudden increases and fluctuations of pressure. Dampening effect can be adjusted.
Gauge Saver: Used to protect pressure gauges from over pressure. Once the pressure reaches the set value, gauge saver will close the pressure path and protect the gauge from being exposed to any further pressure.

Target Fields

Power, Oil & Gas, Refinery, Petrochemical, etc.
Pumps, Compressors, Motors, Boilers, Generators, etc.

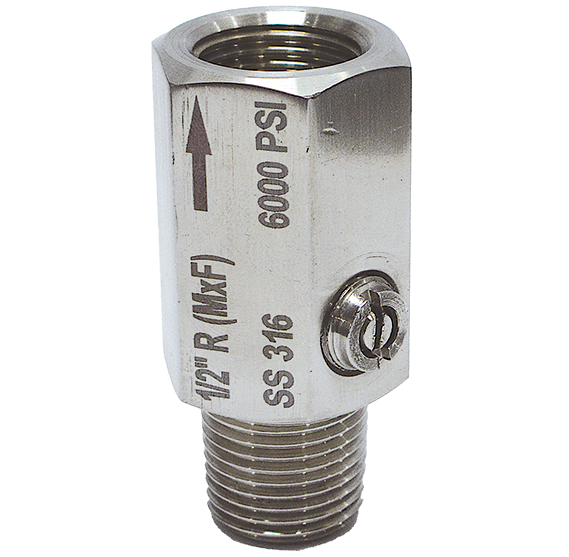

Dampner

EG

Model：EG
Material：316SS
Maximum Pressure：40MPa
Maximum Temperature：80℃

Used to protect pressure gauges from sudden increases and fluctuations of pressure. Dampening effect can be adjusted.

Gauge Saver

ED

Model：ED
Adjustable Range：0.2-35MPa
Material：316SS (Body), FKM(O-ring)
Maximum Pressure：45MPa (When operated)
Maximum Temperature：80℃

Used to protect the pressure gauge from sudden over pressure.

ED1

Model：ED1 (Low Pressure)　
Adjustable Range：10-400kPa
Material：316SS (Body), 316LSS (Bellows), FKM (O-ring)
Maximum Pressure：15MPa(When operated)
Maximum Temperature：80℃

Used to protect the pressure gauge from sudden over pressure.
