TP Meter (Liquid Expansion/Direct Mount)

Feature

Liquid expansion TP Meter is weather proof and can be used outdoors. There is a compensator inside to compensate the ambient temperature increase from direct sunlight, and special thermowell with a built-in valve mechanism allows this product to be installed without the use of any valves.

Target Fields

Water/Hot Water Piping for HVAC

Model / Specifications

Products List

Direct Mount

TP-L Back Connection （IP66）,TP-S Bottom Connection （IP66）,TP-45N 45° Angle （IP66）

  • TP-L
  • TP-S
  • TP-45N

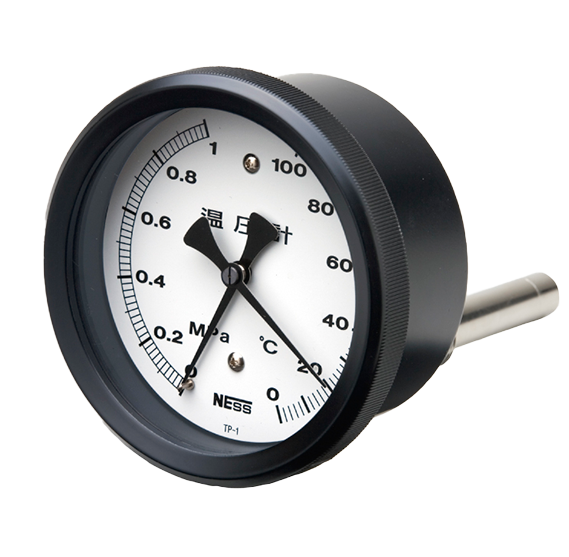

TP-L

Model：TP-L Back Connection（IP66）
Case：ADC（100mm）
Temperature：0-50℃・0-100℃
Pressure：0-0.6MPa・0-1.0MPa・0-1.6MPa
Thermowell：65L・100L

TP-L

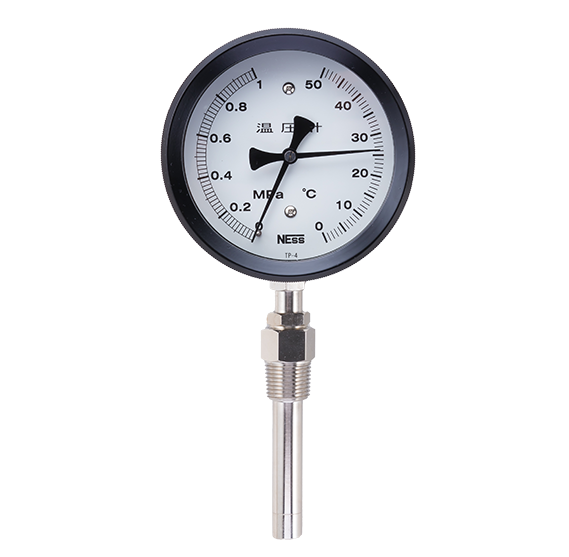

TP-S

Model：TP-S Bottom Connection （IP66）
Case：Aluminum（100mm）
Temperature：0-50℃・0-100℃
Pressure：0-0.6MPa・0-1.0MPa・0-1.6MPa
Thermowell：65L・100L

TP-S

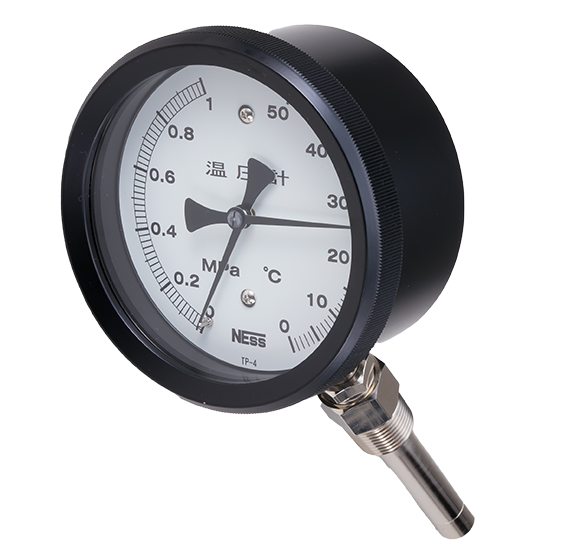

TP-45N

Model：TP-45N 45° Angle（IP66）
Case：Aluminum（Φ100）
Temperature：0-50℃・0-100℃
Pressure：0-0.6MPa・0-1.0MPa・0-1.6MPa
Thermowell：65L・100L

TP-45N
