TP Meter (Combined Temperature & Pressure Gauge)Bimetal

TP Meter (Bimetal)

Feature

Bimetal TP Meter is designed for indoor use only. Special thermowell with a built-in valve mechanism allows this product to be installed without the use of any valves.

Target Fields

Water/Hot Water Piping for HVAC

Model / Specifications

Products List

Direct Mount

BTP-L Back Connection (IP66) ,BTP-S Bottom Connection (IP66),

  • BTP-L
  • BTP-S

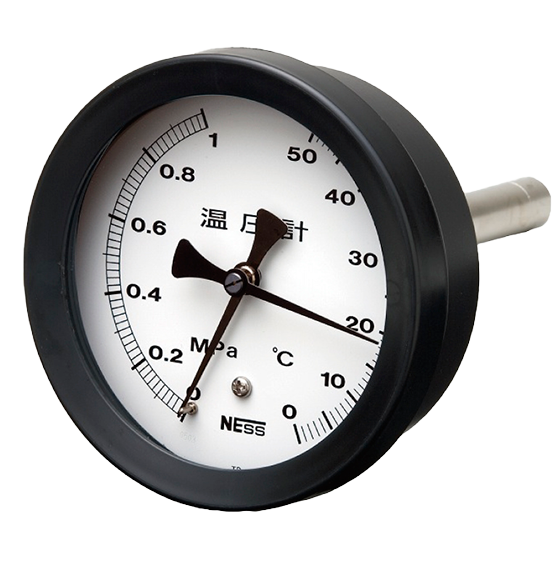

BTP-L

Model:BTP-L Back Connection (IP66)
Case:Plastic(100mm)
Temperature:0-50℃・0-100℃
Pressure:0-0.6MPa・0-1.0MPa・0-1.6MPa
Thermowell:65L・100L

BTP-L
BTP-S

Model:BTP-S Bottom Connection (IP66)
Case:Plastic(100mm)
Temperature:0-50℃・0-100℃
Pressure:0-0.6MPa・0-1.0MPa・0-1.6MPa
Thermowell:65L・100L

BTP-S

Catalog/Installation and
Operation Manual
