Bimetal Temperature Gauge

Feature

2 metal strips having different expansion coefficient are coiled to compose a bimetal coil. The expansion of bimteal coil according to the temperature change is transmitted to the pointer movement.

Target Fields

Petrochemical, Oil & Gas, Fertilizer, Pharmaceutical, Power, Cement, Food & Dairy, Pulp, etc.

Model / Specifications

Products List

Every Angle ／ Back ／ Bottom

FS-BT：Every Angle,　BS-BT：Back Connection,　US-BT：Bottom Connection

  • FS-BT
  • BS-BT
  • US-BT

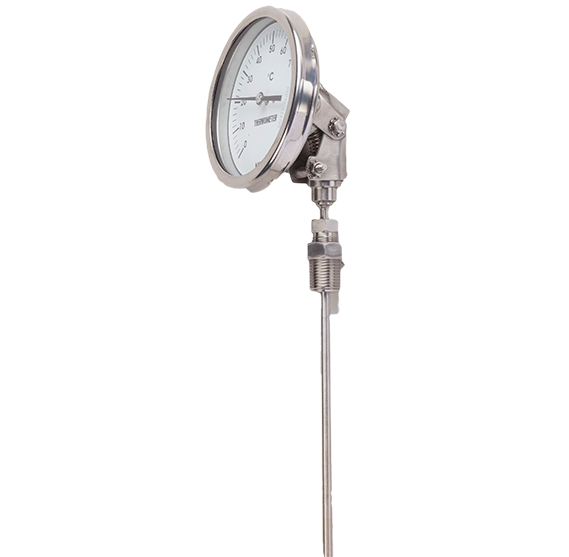

FS-BT

Model：FS-BT 　Every Angle
Case ：SUS（100mm, 125mm, 150mm)

FS-BT

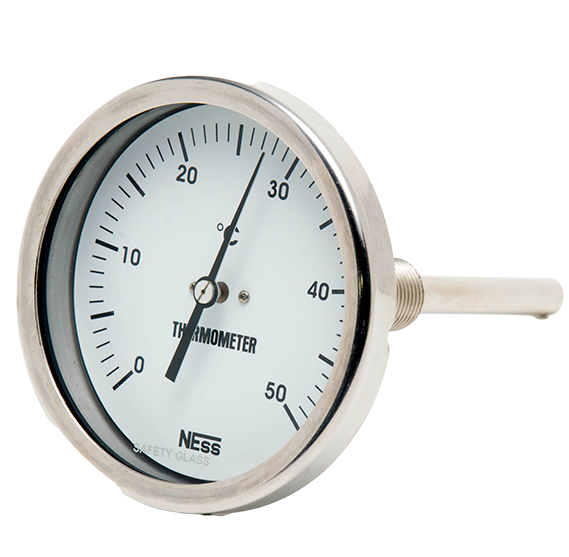

BS-BT

Model：BS-BT　 Back Connection
Case ：SUS（100mm, 125mm, 150mm)

BS-BT

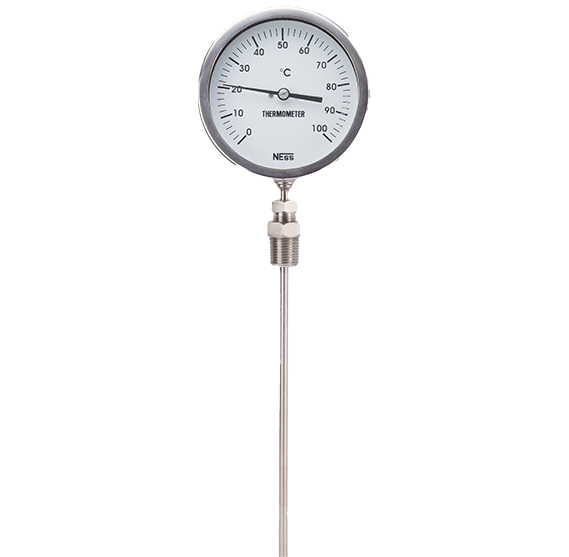

US-BT

Model：US-BT 　Bottom Connection
Case ：SUS（100mm, 125mm, 150mm)

US-BT
